Standards and Protocols
IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS

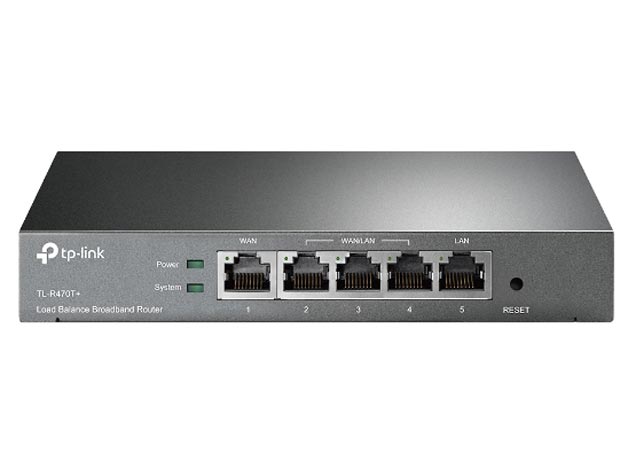

Interface
1 x 10/100 Mbps RJ45 Fixed Port (WAN)
1 x 10/100 Mbps RJ45 Fixed Port (LAN)
3 x 10/100 Mbps RJ45 Changeable Port (WAN/LAN)
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 328.1feet)
EIA/TIA-568 100? STP (maximum 328.1feet)
- 100BASE-TX: UTP category 5, 5e cable (maximum 328.1feet)
EIA/TIA-568 100? STP (maximum 328.1feet)
LED
PWR, SYS, WAN, LAN, WAN/LAN
DHCP
DHCP Server/Client, DHCP Address Reservation
MAC Clone
Modify WAN/LAN MAC Address
Switch Setting
Port Mirror, Rate Control, Port Configuration, Port VLAN
WAN Connection Type
Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
ACL
IP/MAC/URL/WEB Filtering
Forwarding
Virtual Server, Port Triggering, DMZ
Load Balance
Policy Routing, Link Backup
Security
FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding
Traffic Control
Bandwidth Control, Session Limit
Maintenance
Time Setting, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics
Service
PPPoE Server, E-Bulletin, Dynamic DNS, UPnP
Certification
CE, FCC, RoHS

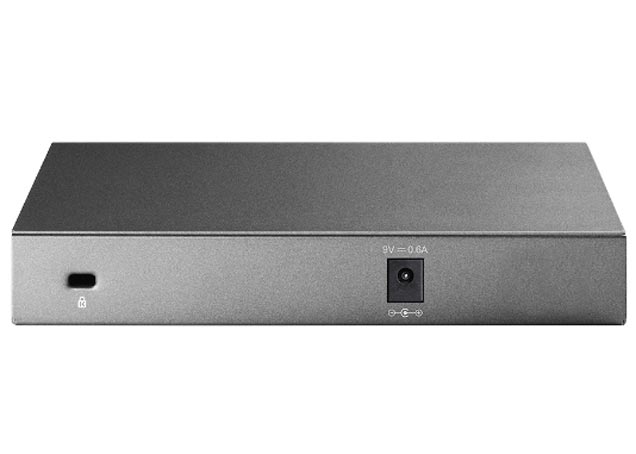

Power Supply
Internal Universal Power Supply :
- AC100-240V~50/60Hz Input
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
